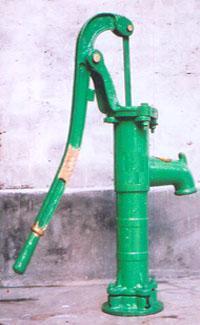

introduction NO.6 CAST IRON SHALLOW WELL HAND PUMP
N6 is a cast iron suction pump, capable of drawing water from shallow depths by creating a partial vacuum in the suction pipe depending as they do on at atmospheric pressure to drive water up to the surface. The pump use is restricted to regions with water table no more than seven(7) meters below the surface. For reasons of economy and convenience this pump has become very popular for serving individual families and small group of communities. Millions of pump are in regular use in the Asian countries. With minimum skill this pump can be installed and maintenance can be carried out.
|
Part no
|
Description of part
|
Oty. Per Cylinder
|
|
1
|
Pump Handle CI
|
1
|
|
2
|
Fulcrum Pin EN 8 steel
|
2
|
|
3
|
Hex.Bolt M6
|
3
|
|
4/6
|
Plunger Rod-Mild Stl.Elec.Galvd
|
1
|
|
5
|
Rod Hanger Pin-En8 Stl
|
1
|
|
7
|
Hex Nut M 12
|
7
|
|
8
|
Spring Washer M12
|
7
|
|
9
|
Head Cover CI
|
1
|
|
10
|
Hex Head Bolt M12
|
7
|
|
11
|
Pump Body-CI
|
1
|
|
12
|
Bucket Washer-PVC
|
1
|
|
13
|
Washer (Part of Plunger Rod)
|
1
|
|
14
|
Upper Plunger disc MS
|
1
|
|
15
|
Spacer – MS
|
1
|
|
16
|
Lower Plunger disc-MS
|
1
|
|
17
|
Nylock Nut M 12
|
1
|
|
18
|
Hex Nut M6
|
1
|
|
19
|
Plain Washer M6 STD.
|
1
|
|
20
|
Flapper Weight CI
|
1
|
|
21
|
Flapper Valve Veg.Tan.Leather
|
1
|
|
22
|
Base Plate CI
|
1
|
Parts subjected to rusting are hot – dip galvanized.
|
