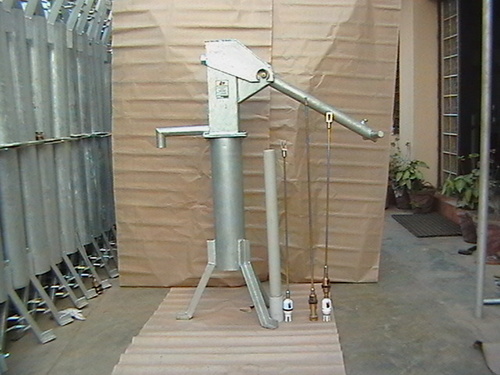

Afridev Deep Well Hand Pump

Afridev Deep Well Hand Pump
Afridev Deep Well Hand Pump
Product Code : Afridev
Brand Name : AOV
Product Description

Afridev Deep Well Hand Pump

We have acquired the talent to manufacture and export superior quality Afridev Deep Well Hand Pump. These products are specially manufactured using quality product which is sourced from the reliable vendors  of the market. The offered range of well hand pump exhibit superb features like excellent functionality and corrosion resistance. In order to meet all the needs and demands of our clients', we provide our products in various sizes and dimensions. Highly applauded in the market, Afridev Deep Well Hand Pump is suitable for both industrial as well as commercial sector.

Application Data:

Minimum Bore Size

100 mm

Internal Diameter Of Cylinder

50 mm

Stroke Length

225±3 mm

Average Discharge Per Stroke

17 litres per minute of 40 strokes.

Operating Depth (approximately)

up to 80 meters

Product Specifications:

Options

A

B

C

D

Pump Head Type

Pump Head With Short Spout (30 cm): Drawing No. B2003

Pump Head With Long Spout (58 cm): Drawing No.B2003

-

-

Pump Stand Type

Pump Stand With 3 Legs: Drawing No. B2050

Pump Stand With Bottom Flange: Drawing No. B2055

Pump Stand With ISO Flange: Drawing No. D9071

-

Rising Main Arrangement

PVC-U Rising Main With Sockets: Drawing No.A2119

PVC-U Rising Main With, bell End: Drawing No. A2099

-

-

Cylinder Arrangement

Brass Plunger And Brass Foot Valve: Drawing No.A2296

Brass Plunger And Plastic Foot Valve: Drawing No.A2257

-

-

Pump Rod Arrangement

Ms-Pump Rods, Threaded Connectors: Drawing No.A2206

SS-Pump Rods, Threaded Connectors: Drawing No. A2209

SS-Pump Rods, Hook And Eye W:ST="On"Conn.: Drawing No. A2110

FRPPump Rods, Brass Connectors: Drawing No.A5889

Technical Specifications

Water hand pump type

Specifications followed

Stroke length in mm

Borewell/Casing size (NB. Min) in mm

State water level in meters

Discharge in litres

Pipe NB mm

Size length mm

Connecting dia mm

Rod size length mm

Cylinder inner dia (mm)

Afridev

Skat(latest revision)

225+6

100

10 to 45

990

63 OD

2900/3000

10 & 12

2865/3000

50

Features with Options

  • Pump head: Mild steel hot dip galvanized construction
  • Connecting Rods: Mild steel electroplated and hot dip galvanized, FRP, Stainless steel(Grade AISI: 202/304/316)
  • Riser Pipe: Galvanized Iron, uPVC, Stainless steel(Grade AISI:202/304/316)
  • Cylinder: Cast Iron brass sleeved, uPVC sleeved, stainless steel, fully brass
  • Pedestal: Three legged, square flanged and round flanged pedestal
  • Water tank: With M.S socket, SS socket
  • Special took kits: For installation and maintenance of hand pumps
  • Standard took kits: For installation and maintenance of hand pumps
